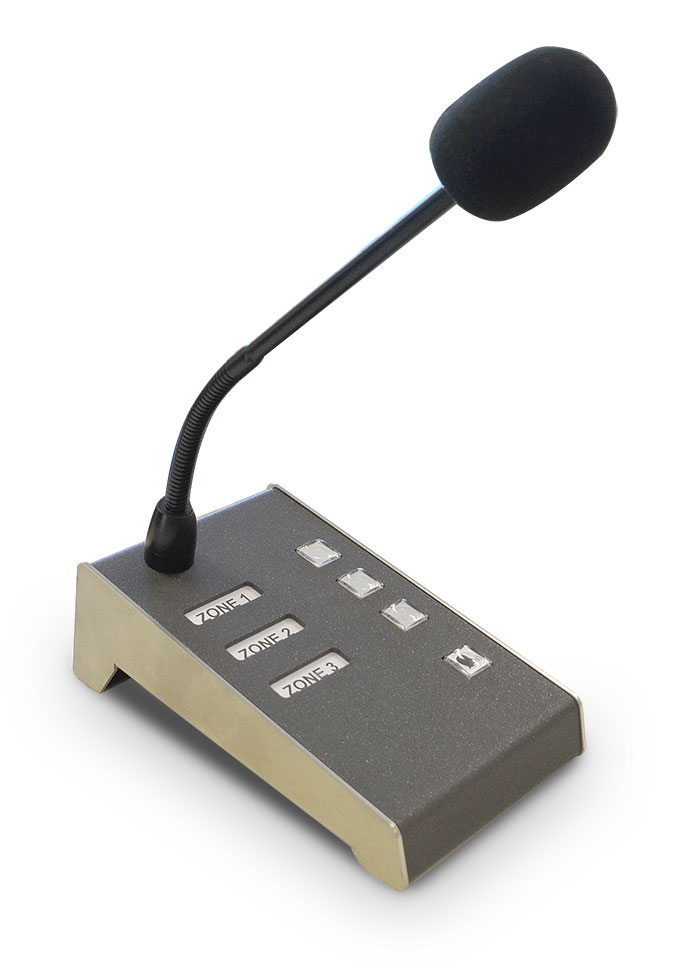

Business-Callstation1/3
- Call station for ITEC-NET system with 3 „ZONE“ buttons
- Sturdy steel panel housing
- Electret condenser microphone with goose neck
- Audio output analogue, balanced

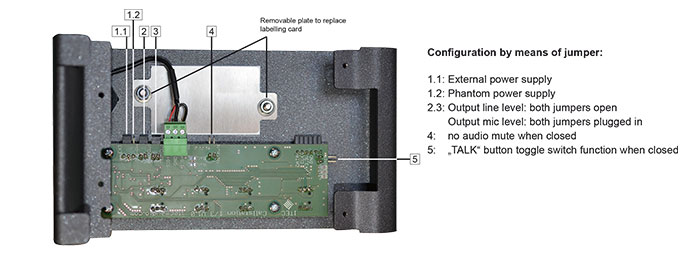

- Microphone or line level can be configured
- Control signals for „ZONE 1, 2, 3“ and „TALK“
- Connection by means of CAT-5 wire (RJ45 plug connector)

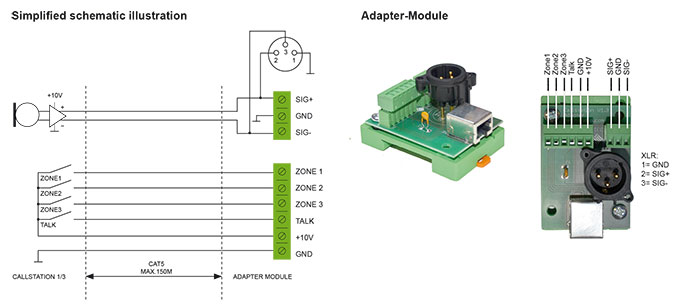

- Adapter module for simple connection to central system
- Interchangeable labelling card
- „TALK“ button optionally with push button or toggle switch function
Specifications
 |
|
| CALL STATION CONSTRUCTION | Steel panel hosing with permanently mounted goose neck microphone |
| MICROPHONE | Electret condenser microphone, length: 295 mm |
| ADAPTER CONSTRUCTION | „Open frame“ construction with base for 35 mm snap-on plate |
| POWER SUPPLY | 10 VDC-12 VDC (via RJ45) |
| CURRENT DRAIN | max. 100 mA |
| OUTPUT LEVEL (MIC) | -30 dB balanced |
| OUTPUT LEVEL (LINE) | 0 dB balanced |
| HOUSING MATERIAL / COLOUR | Surface: powder-coated in dark grey, textured / sides: Stainless steel untreated |
| PROTECTION CLASS | IP 44 |
| OPERATING TEMPERATURE | -5°C - +40°C |

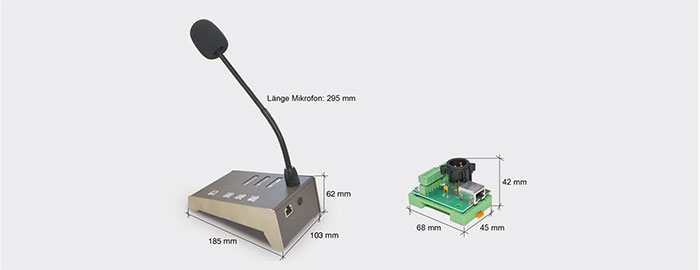

| DIMENSIONS | Call station: 185 x 103 x 62 mm / Adapter: 68 x 45 x 42 mm |
| WEIGHT | Call station: 1.10 kg / Adapter: 50g |
All information without guarantee. Subject to technical changes.
