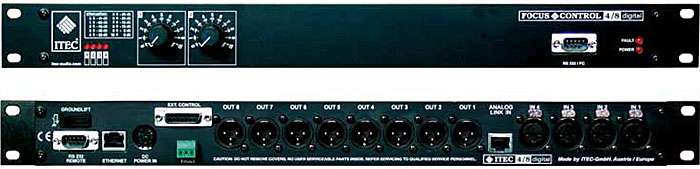

ITEC Focus-Control 4/8 digital
The heart piece of the NEOFOCUS is the ITEC FOCUS-CONTROL. It provides for signal processing for all NEOFOCUS speakers and can be configured very easily using the provided configuration software SPLITDESIGN. When going live, you have to configure only two parameters:
- Speaker type
- Focal point (distance and sound projection angle)
- Angle of beam (a measure to the vertical height of projection)
- Presence (2 settings from high authenticity of sound to optimal intelligibility)
ITEC FOCUS-CONTROL allows you to control either 2 units of ITEC NEOFOCUS 4 or 1 unit of ITEC NEOFOCUS 6 respectively ITEC NEOFOCUS 8. A 5-band parametric equalizer and a digital delay allow an optimal adaptation to the acoustic room characteristics and modifications as a function of the distance to other systems. Up to ten complete configurations can be programmed and retrieved at any time.
Specifications
| Frequency Response: | 20 Hz 20 KHz / -1 dB |
| Harmonic Distorsion: | <0.005 % |
| Overall Dynamics: | 103 dB |
| Power Supply: | external power supply unit, input 115-230 VAC |
| Inputs: | 4 x XLR, symmetrical, -60 dB bis +20 dB |
| Input Impedance: | 6.6 k |
| Phantom Power: | 12 Volt, switchable |
| Outputs: | 8 x XLR, symmetrical, +10 dB |
| Equalizer: | 5 parametrical filter is disposable |
| Delay: | 0.023 500 ms |
| Serial Interface: | a RS-232 for programming and remote control |
| Ethernet Interface: | optional |
| Dimensions: | 482 x 44 x 180 mm (W x H x D), 19, 1 RU |
| Weight: | 2.40 kg |
All information without guarantee. Subject to technical changes.
