ITEC*NET
System Data
- Ethernet based multichannel audio system for public address, music, voice alarm and broadcast applications
- Simultaneous transmission of up to 64 digital audio channels in studio quality (48 kHz/24 Bit), with a constant latency of 1.33 ms (digital)
- Distributed audio system, no „single point of failure“
- Real-time configuration with ITECNET - NETDESIGN software:
Allows system configuration changes during normal operation of the system - Real-time audio transmission: Constant latency of 4.6 ms analog-in/analog-out
- Up to 4000 devices can work simultaneously together in one network
- Up to 16.000 output zones in one audio network
- Can also be used with standard Ethernet network infrastructure
- Integrated 2 GB memory card for alarm texts and music files
Recording capacity 256 files, total time about 3 hours!
(Can be integrated in any network component) - Integrated real-time recorder for delayed announcements
- Speaker impedance- line monitoring during program mode
- ITECNET Application Programmable Interface (TCP/IP) for connecting to security management systems and media control systems
- It has never been so easy to plan complex audio systems
- All system components are certified according to EN 54-16

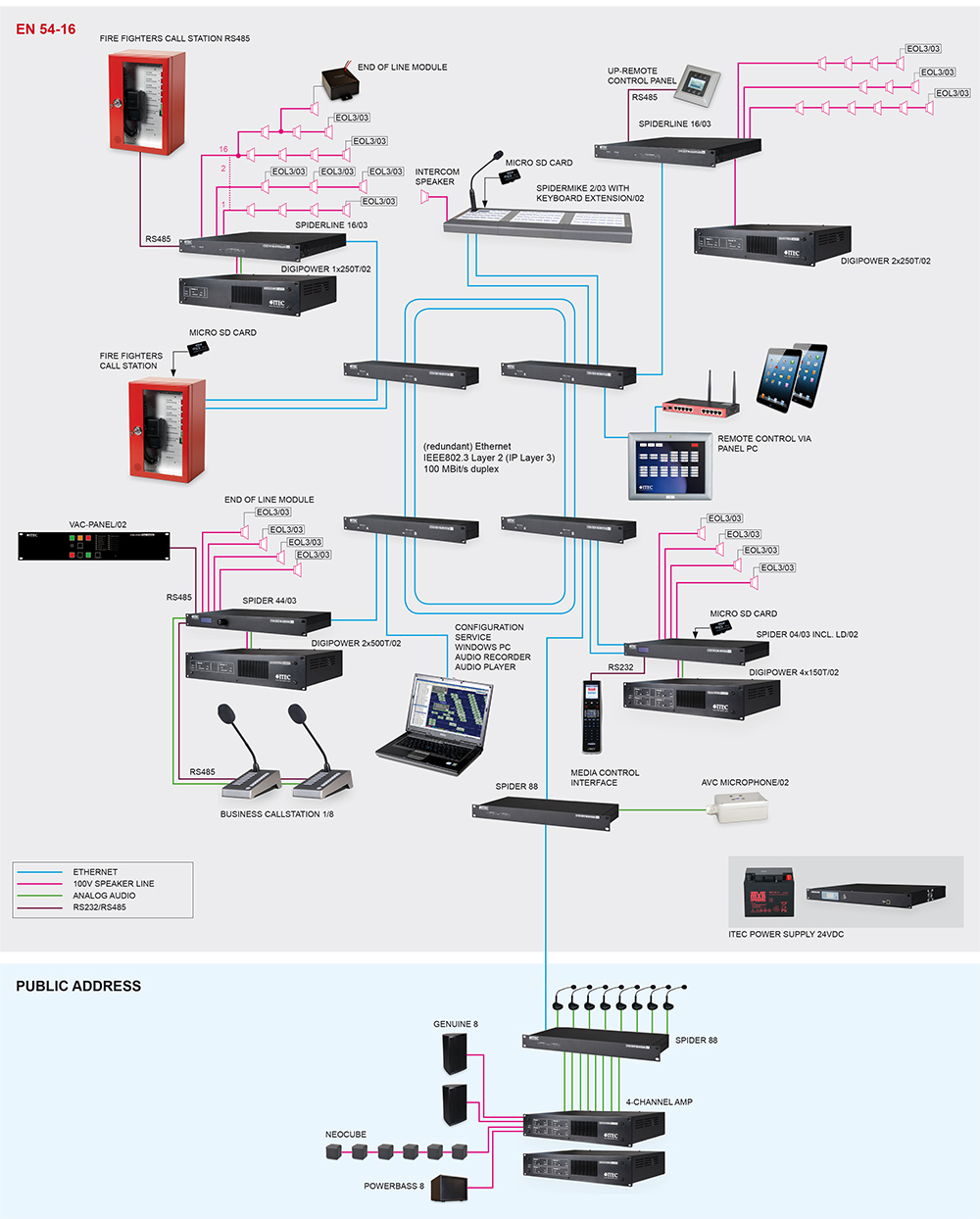

System Overview
Relevant standards:
EN 54-16 governing fire detection and fire alarm systems, voice alarm control and indicating equipment
EN 54-4 governing fire detection and fire alarm systems, power supply equipment
EN 54-24 governing components for components of voice alarm systems - loudspeakers
DIN EN 60849 governing electro-acoustic emergency warning systems
DIN 0833-4 governing alarm systems for fire
