ITEC MicAmp 4
A universal, compact mixer/pre-amplifier in professional quality

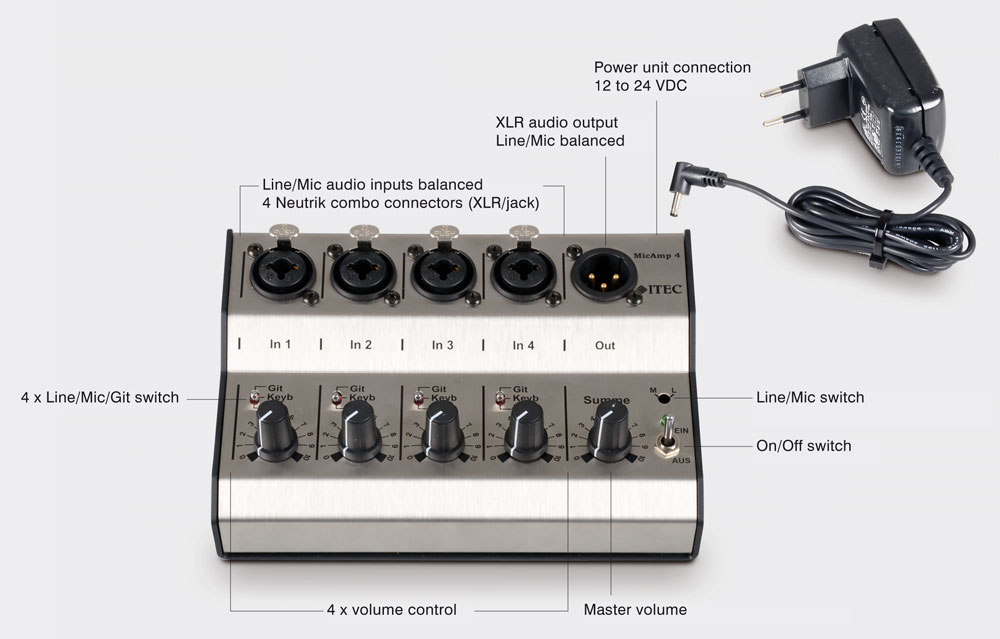

The ITEC MicAmp 4 is a universal, compact, professional quality mixer/pre-amplifier with 4 audio inputs and one audio output. All inputs are balanced and have high-grade input amplifiers. The Neutrik combo connectors allow for easy connection of XLR or jack plugs to each input.
Input sensitivity can be switched (Mic/Line/Git), allowing for connection of all common microphones, instruments and feed devices. A phantom power of 12V (or 24V if a 24V power unit is used) can be switched on/off for each channel using a jumper in the device. The jack input is always phantom power-free.
The MicAmp 4 has a potentiometer for separate volume control for each input and a master control. The audio output is balanced and can be adjusted to Mic or Line level. This ensures that the MicAmp 4 can be easily connected to Line inputs and available microphone inputs of existing systems.
The MicAmp 4 is perfect as a small mixer for choirs and music groups, as an input extension for existing audio systems, as a mixer for multiple auxiliary devices, level booster, balancing amplifier, and much more.
Its high audio quality, easy handling and robust, fine metal housing distinguish the MicAmp from all other common products on the market. Its use, ideally in combination with other ITEC components, is a guaranteed success.
Specifications
 |
|
| TYPE | MicAmp 4 |
| Power supply | 12V to 24V DC |
| Current consumption | < 100 mA |
| Included Plug-in power unit | 12V DC |
| Audio Inputs | 4 x combo XLR connector / 6.3mm jack (jack without phantom power) |
| Phantom power | 12V or 24V (depending on power unit), to be switched on/off for each channel using jumper (only XLR) |
| Gain | 0 dB Line / -15 dB Git / -30 dB Mic (can be switched for each channel on front plate) |
| Audio Output | XLR male, balanced, +12 dB (Line, all controls fully turned up) |
| Booster | Additional +6dB booster (internally selectable using jumper) |
| Line/Mic output switch | on the front plate using screwdriver (Mic = 30dB) |
| Volume control | Potentiometer for each channel and one master potentiometer |
| Housing | Upper side made of high-grade steel, bottom side aluminium black, anodised |

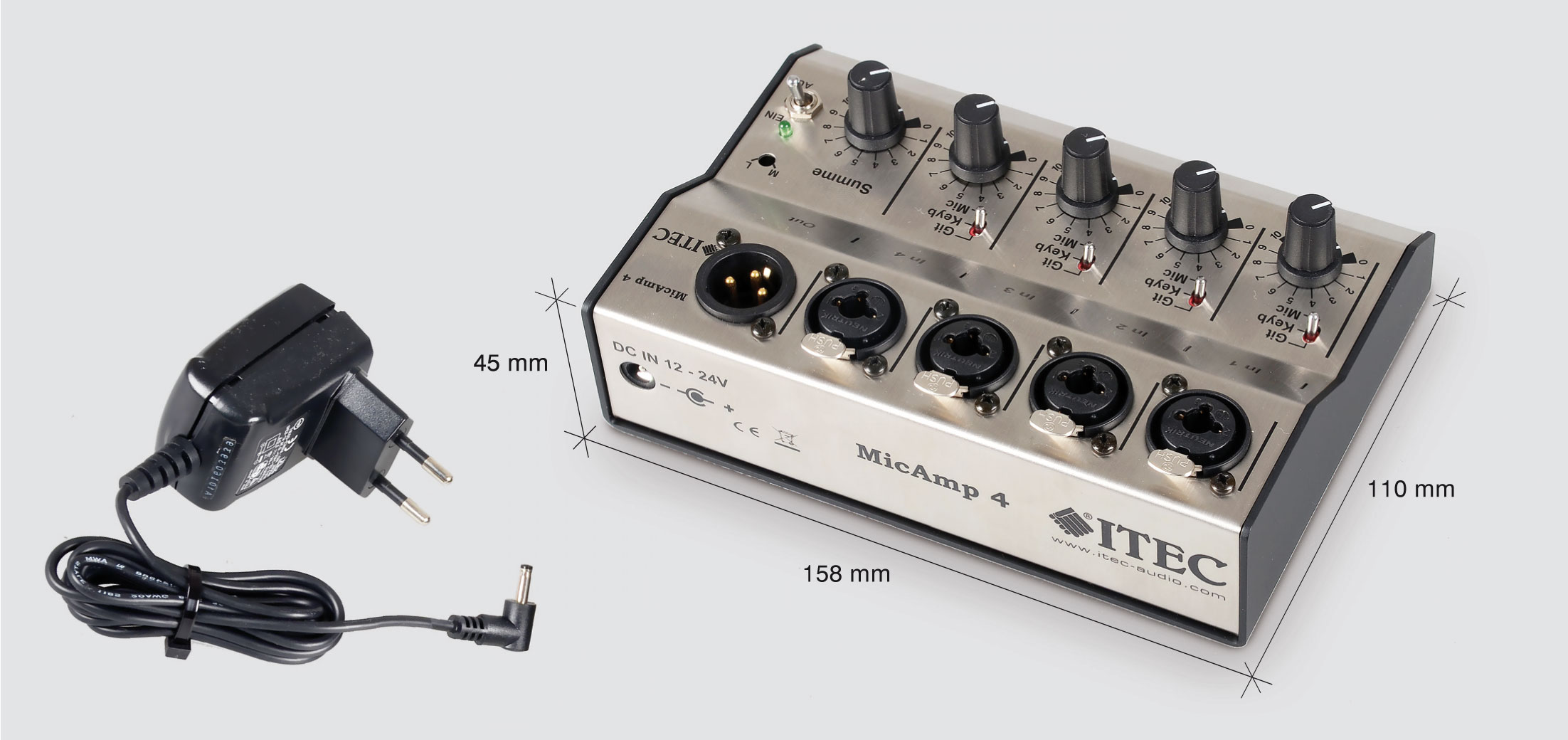

| Dimensions | 158 x 110 x 45 mm (W x D x H) |
| Weight | approx. 650g incl. power unit |
All information without guarantee. Subject to technical changes.
