MONITOR 8
Performance Features
- 2-way full-range speaker in a monitor housing with 8“ low-mid speaker and 1“ compression driver on a Tractrix Horn.
- Homogenous dispersion characteristics
- Integrated crossover with self-resetting protection circuit for low and high frequencies and passive filters for runtime and phase optimisation
- Connection terminal, optinal speacon
- Mounting bracket, optional bracket with swing and tilt function
- Birch plywood, PU-coated black, structured white (RAL 9010) finish
- Highly permeable, powder-coated speaker cover, steel galvanised, with changeable black acoustic foam.
- Optional 8 Ohm or 100 V version
Standard
 |
 |

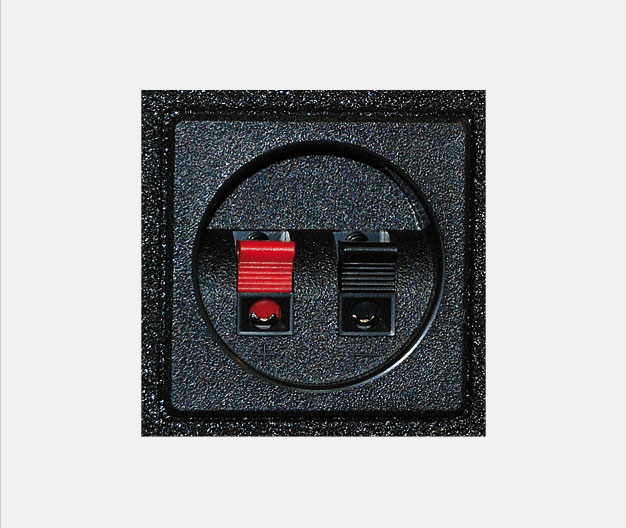

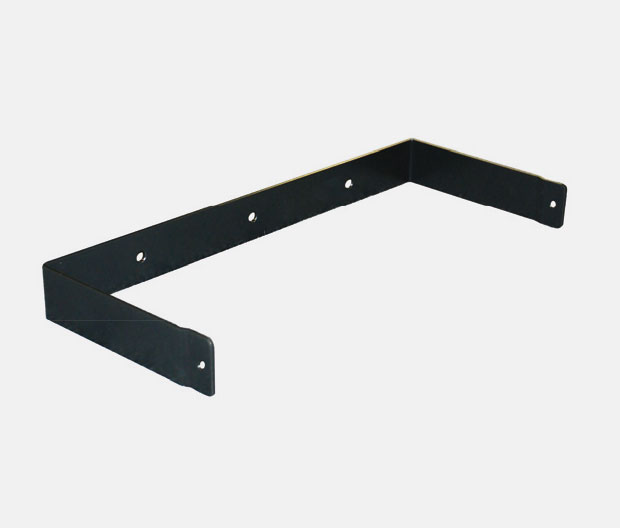

| Terminal | Mounting bracket |
Option
 |
 |

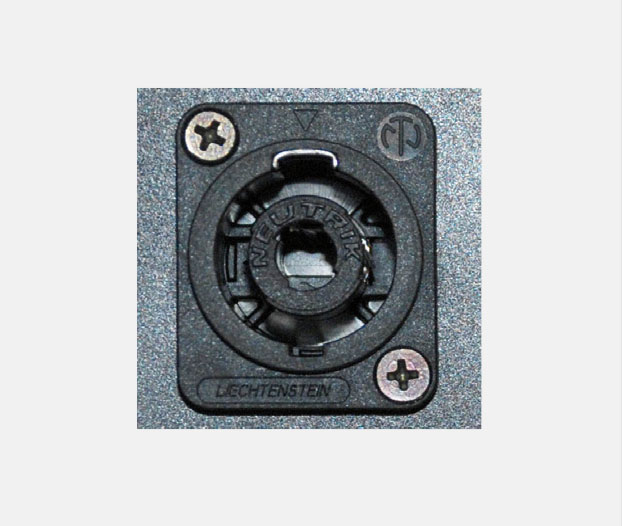

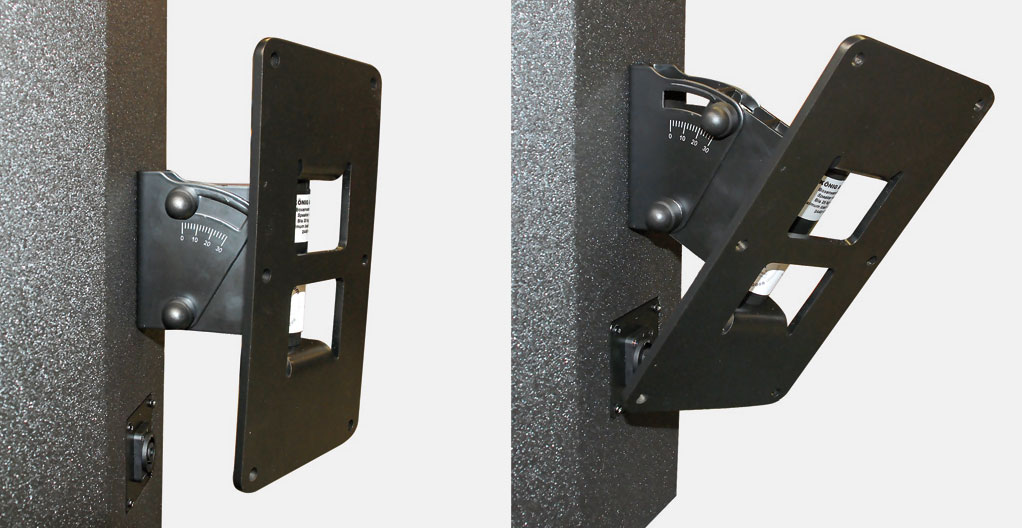

| Speacon | Mounting bracket with swing and tilt function |
Specifications
 |
|||
| MODEL | MONITOR 8 / 8 OHM | MONITOR 8 / 100 V | |
| Load Capacity: | 200 W/RMS | 120 W/RMS | |
| Rated Sound Pressure Level: | 95 dB/1 W/1 m | ||
| Maximum Sound Pressure Level: | 121 dB | 116 dB | |
| Frequency Range -6 dB: | 65 Hz -20 kHz | 80 Hz -20 kHz | |
| Drivers: | 8“ low-mid speaker and 1“ compression driver on a Tractrix Horn | ||

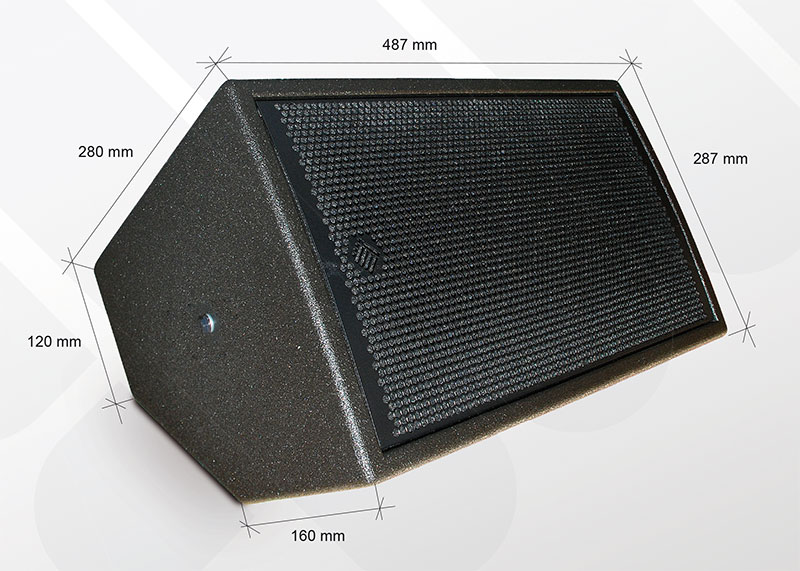

| Dimensions: | 287 x 487 x 280 mm (W x H x D) | ||
| Weight: | 11,3 kg | 10,5 kg | |
| Case: | Birch plywood | ||
| Colours: | Colours PU-coated black, structured white (RAL 9010) finish | ||
| frequency response | |||
 |
|||
All information without guarantee. Subject to technical changes.
