NEOSLIM 8

NEODYM TECHNOLOGY IN SLIM DESIGN!

Five models with different vertical irradiation characteristics  for use in rooms with difficult acoustics. Elegant, super-slim design for high-quality speech amplification.





A great challenge during development of this PA speaker was building a slim, elegant speaker that convinces with high sound pressure levels and excellent speech intelligibility. Long-term experience in this field, the support of a unique, self-developed acoustic simulation program, and extensive test series led to an outstanding result: the ITEC NEOSLIM series.




Application Areas
For speech amplification in large, reverberant rooms, such as churches or heritage halls, it is important to not unnecessarily stimulate the disturbing reverberation. The ratio of direct sound and reverberation is improved by consistent sound bundling. Reflections are effectively prevented, which significantly enhances speech intelligibility. Thanks to the operating ranges of these systems, the number of speakers can be drastically reduced. Apart from cost reduction, this helps prevent reverberations and diffuse sound fields.
Especially in architecturally sensitive areas a discreet design is usually just as desirable as top acoustics. The NEOSLIM series speakers perfectly meet both of these requirements.









Specifications

  • Perfect sound in rooms with difficult acoustics
  • Very high sound pressure levels despite very small dimensions
  • 5 models of various sizes and irradiation characteristics
  • Selection of four power levels (100 volt versions)
  • Practical push terminal
  • Mounting accessories included
  • Special colours (all RAL colours) possible on request
  • Special lengths and versions possible on request
  • Elaborate casing design, various mounting variants
  • Aluminium casing: very robust and extremely light (easy mounting)



Standard equipment, accessories

Mounting bracket standard short (included)
Dimensions: 9 x 6.5 cm

Mounting bracket long (optional)
Allows greater tilt of the sound column;
Dimensions: 18.5 x 13.5 cm

Connection Terminal
Push terminal with power selection (100V versions), accessible through the lower, divisible cover

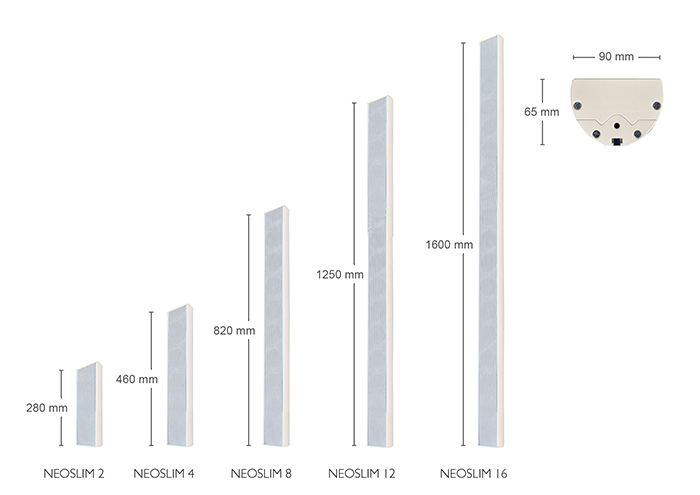

Dimensions - Neoslim series

NeoSlime-Serie

Technische Daten - Neoslim 8

MODELS NEOSLIM 8
  100 V 4 Ohm
Rated load [WRMS] 20 160
Nominal pressure [dB/1W/1m] 96
Max SPL [dB] 109 115
Frequency response [-6 dB] 140 Hz - 15 kHz
Integrated power switch [W] 5/10/15/20 -
Housing and mounting hardware Welded aluminium housings for  weather-proof outdoor installations, all drivers weatherproof, speaker grille galvanized, powder coated, 2 mounting brackets
Driver 8 Pcs. 3"“ Neodym
Dimensions (W x H x D): 90 mm x 820 mm x 65 mm
Weight 4.2 kg 4 kg
Standard Colour White RAL 9010, optional RAL custom colours on request


 All information without guarantee. Subject to technical changes.
