POWERBASS-8 / 8 Ohm
During music performances the usage of bass speaker systems is necessary to compensate an inadequate reproduction of low frequencies by full range public address systems. However an optimum matching of both systems is very important and essential. Here you fi nd the adequate bass speaker systems, which fi t to our satellites: ITEC bass speak systems are “superfast” showing a linear frequency response and highest effi ciency. Due to our high-end power transducer 100 V applications with a lower cutoff frequency of 40Hz are possible (option).
Fields of applications of the ITEC PowerBass 8
Subwoofer used within the ITEC Power Bass Systems are equipped with the latest generation of Neodym drivers. The optimum design of the bass reflex enclosure (light weighted, compact and equipped with a highly wear resistant surface) offers a universal usage and the authentic reproduction of music during live performances or playback applications. Due to the high efficiency of the drivers, applications together with 100V toroidal transformers without frequency distortions are possible. Optional: The integration of a 6dB cross-over allows the direct connection of the subwoofer to an amplifier without the need of any additional signal processing.
Specifications
 |
||
| MODEL | Powerbass 8 / 8 Ohm | |
| Nominal load: | 180 W/RMS | |
| Rated SPL dB/1 W/1 m (half space): | 86 | |
| SPL max: | 108 dB | |
| Usable frequency response: | 30 Hz-200Hz | |
| Enclosure: | Enclosure made of plywood, Shock resistant speaker cover | |
| Driver: | 1x TT 8“ Langhub-Chasis | |

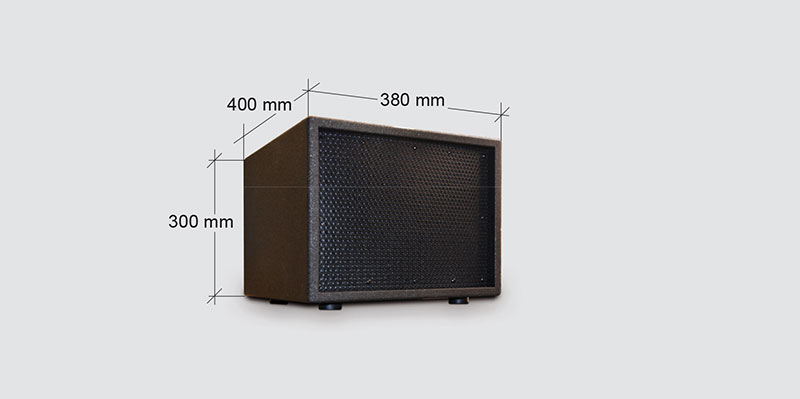

| Dimensions (W x H x D): | 380 x 300 x 400 mm | |
| Weight: | 16 kg | |
| Coloring: | moisture resistant PU coating black | |

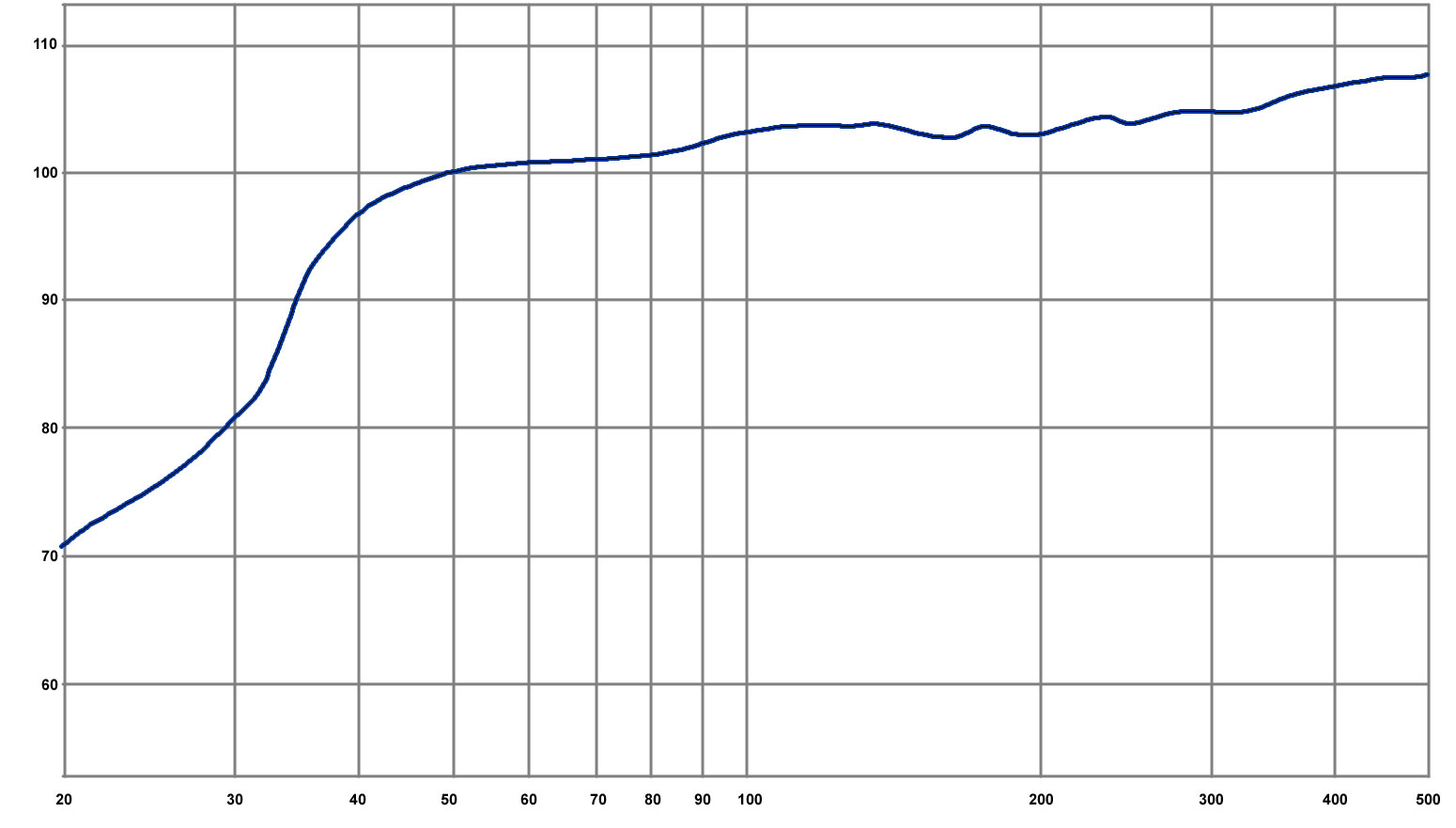

| TEST CHART | ||
 |
||
All information without guarantee. Subject to technical changes.
