ITEC VHF Diversity Receiver

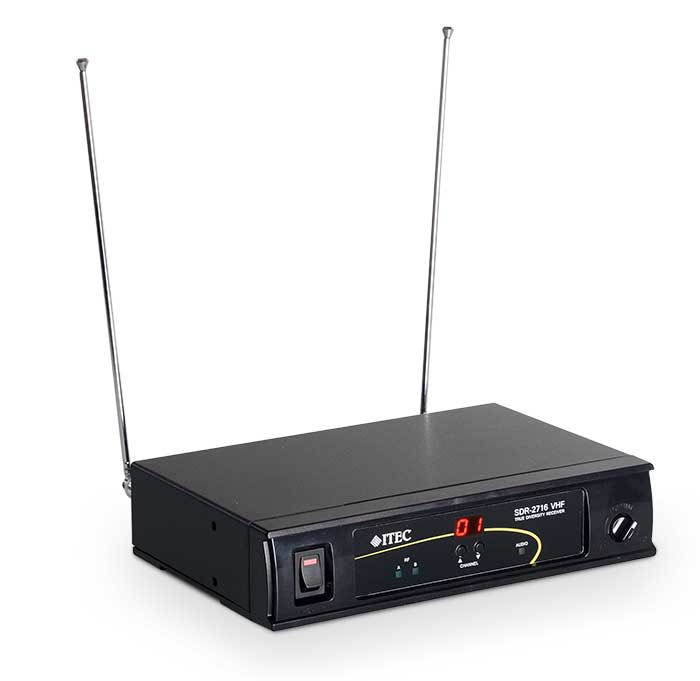

Diversity stationary receiver ITEC SDR-2716-A

SDR-2716-A

VHF Diversity-Empfänger

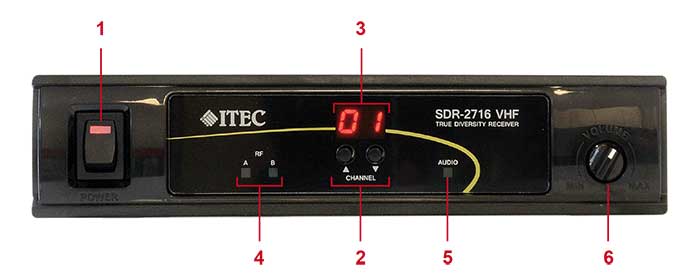

Elements on the front:

  1. POWER: On / off switch
  2. Channel UP/DOWN : Buttons for channel adjustment
  3. Channel display
  4. RF A/B: Reception indicator (shows if reception and which of the two antennas is currently active)
  5. Audio: Audio signal indication
  6. Volume: Audio level adjustment

VHF Diversity-Empfänger

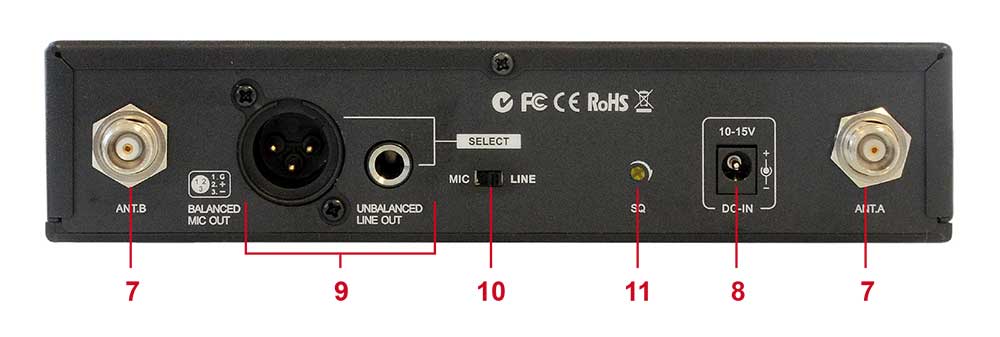

Elements on the back:

7.   ANT.A / ANT.B: TNC sockets for connecting the supplied rod antennas or ext.
      antennas.
8.   DC-IN: Socket for connecting the supplied power adapter.
9.   MIC: Balanced microphone level output, XLR Male
      Line: Unbalanced line output, 6.3 mm jack
      It is recommended to use the balanced output.
10. MIC/LINE: Switch between XLR (MIC) and jack (LINE).
11. SQ: Squelch
      Default setting: complete left, minimum interference suppression, maximum distance.
      Turn to the right (clockwise): maximum interference suppression, shorter distance.

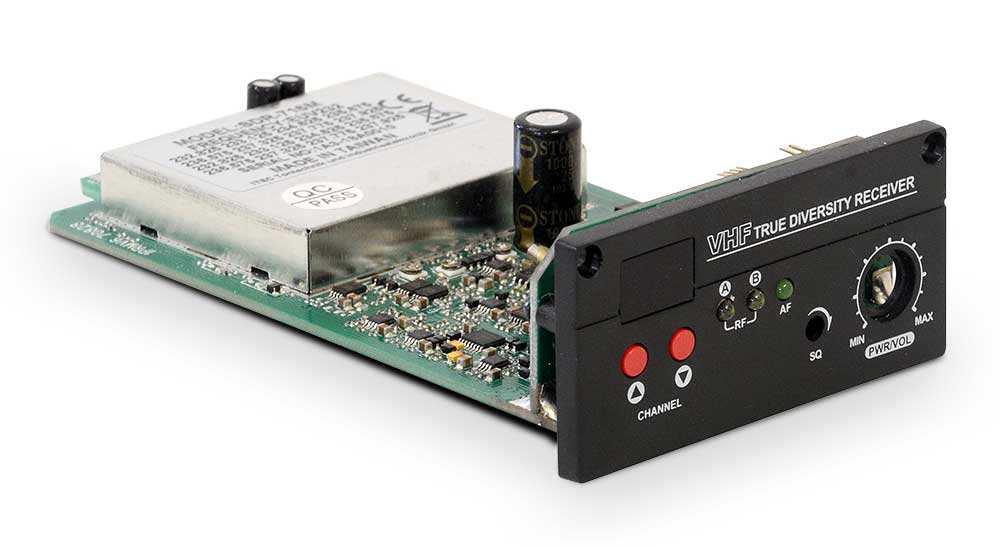

Diversity Module receiver ITEC SDR-716M-A

SDR-716-A

VHF Modulempfänger

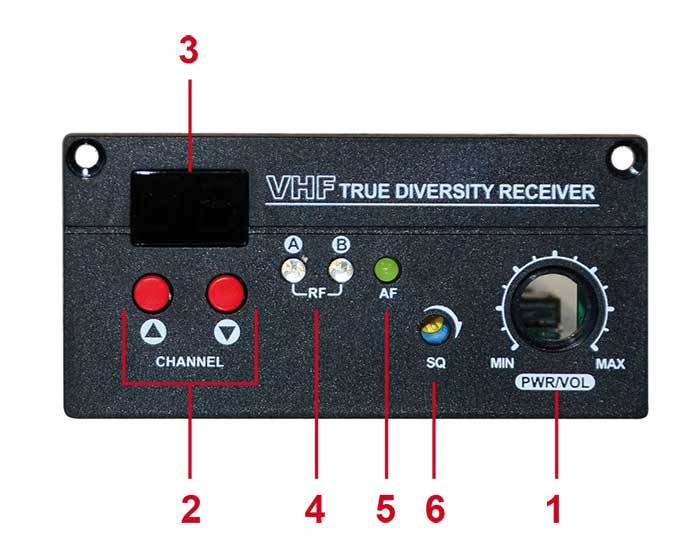

Elements on the front:

  1. (PWR/VOL: On/off switch and audio level adjustment)
  2. Channel UP/DOWN : Buttons for channel adjustment
  3. Channel display
  4. RF A/B: Reception indicator (shows if reception and which of the two antennas is currently active)
  5. AF: Audio signal indication
  6. SQ: Squelch
    Default setting: complete left, minimum interference suppression, maximum distance.
    Turn to the right (clockwise): maximum interference suppression, shorter distance.



Accessories

Ground Plane Antenna (VHF) for SDR-2716
External antenna system for extending operating range, coaxial connector cable 3m included.

Ground Plane Outdoor Antenna (VHF)
External antenna system for extending operating range, outdoor use. Wall mount included.

INSTALLATION-SET FB-71-A
for one SDR-2716-A ½ 19“ receiver

INSTALLATION-SET FB-72-A
for two SDR-2716-A ½ 19“ receiver





Specifications

GENERAL FEATURES OF THE SYSTEM
Radio frequency EUV-232: 232 MHz - 238 MHz / EUV-243: 243 MHz - 250 MHz
Maximum frequency deviation ± 40 kHz
Frequency response 50 Hz – 18 kHz
Harmonic distortion < 0.5 %
SDR 2716-A DIVERSITY RECEIVER, ½ 19“
Power supply 12 V DC (PSU 230 V AC / 12 V DC included)
Dimensions, weight 200 x 47 x 180 mm, (1/2 19“, 1 HE), Weight= 0.7 kg
SDR-716M-A RECEIVER MODULE
Power supply 12 V DC , power consumption approx. 110 mA
Dimensions, weight 75 x 35 x 130 mm (W x H x D), Weight= 79 g


All information without guarantee. Subject to technical changes.
