AVC-MIC/02 (Automatic Volume Control-Microphone)
The ITEC AVC-MIC is a measurement microphone specially designed for the use with ITEC-Net Spider44, Spider04 and Spiderline16 for automatic volume control of background music and announcements by taking into account the predominant ambient noise level.
- Electret condenser microphone with IP54 protective housing
- Supply via phantom power (no separate power supply needed)
- Balanced output
- Mic level or line level (particularly immune to interference)
- Easy assembly and installation

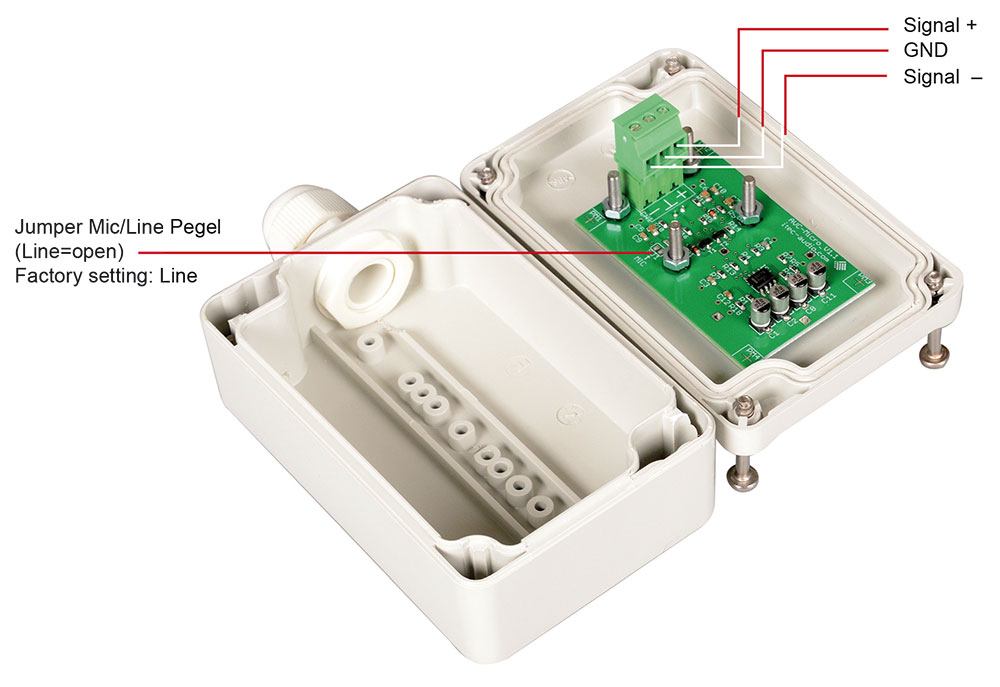

- Connection to 3-pin plug-in terminal

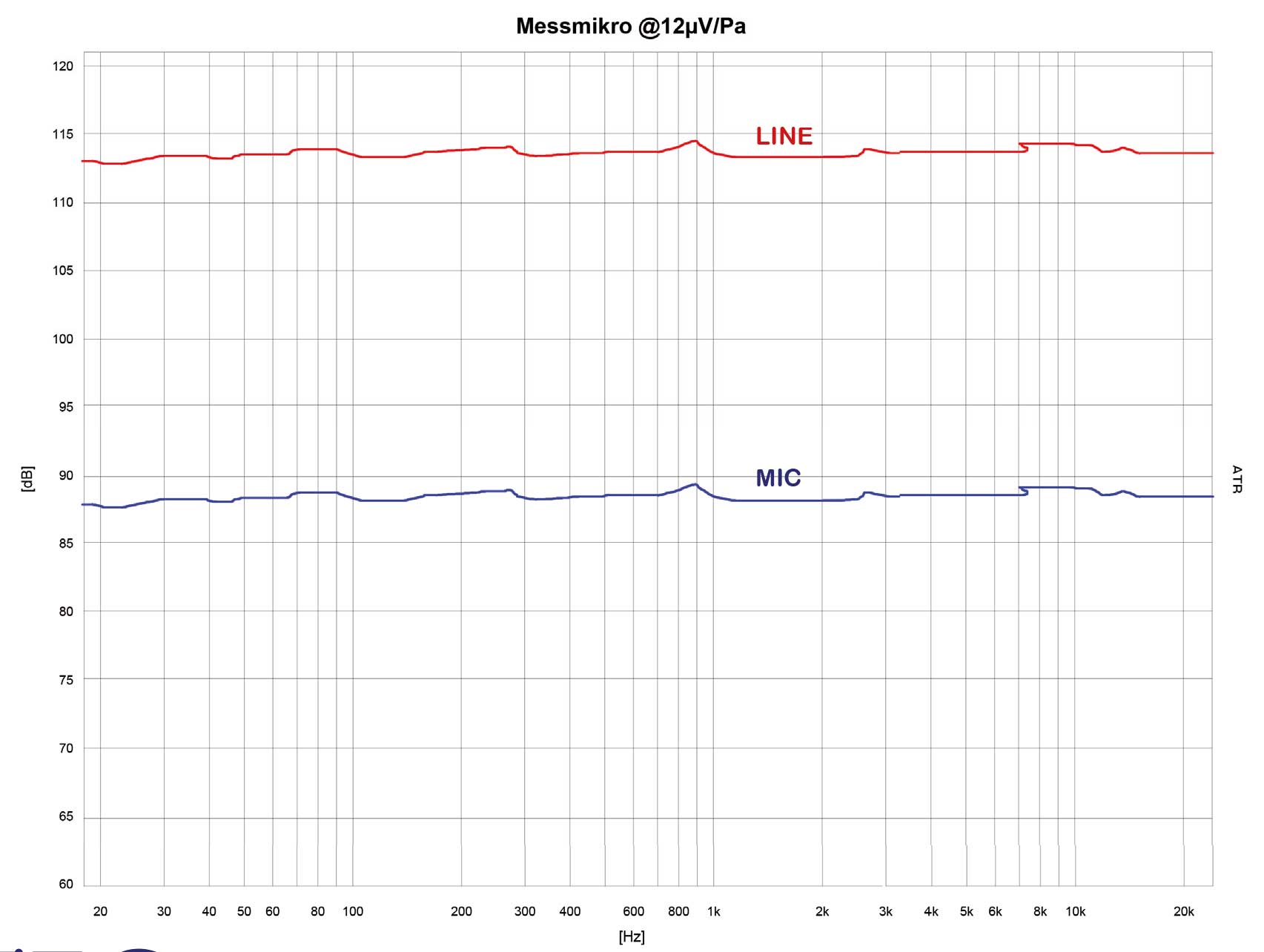

- Linear frequency response of 100 Hz - 10 kHz
Specifications
 |
|
| TYPE | electret condenser microphone |
| POWER SUPPLY | 12VDC phantom power (up to 48 V possible) |
| CURRENT | ca. 2mA @12V |
| OUTPUT LEVEL (MIC) | 12 µV/Pa |
| OUTPUT LEVEL (LINE) | + 25 dB |
| CASE MATERIAL/COLOR | ABS / light gray, similar to RAL7035 |
| PROTECTION | IP54 |
| OPERATING TEMPERATURE | -5°C - +40°C |

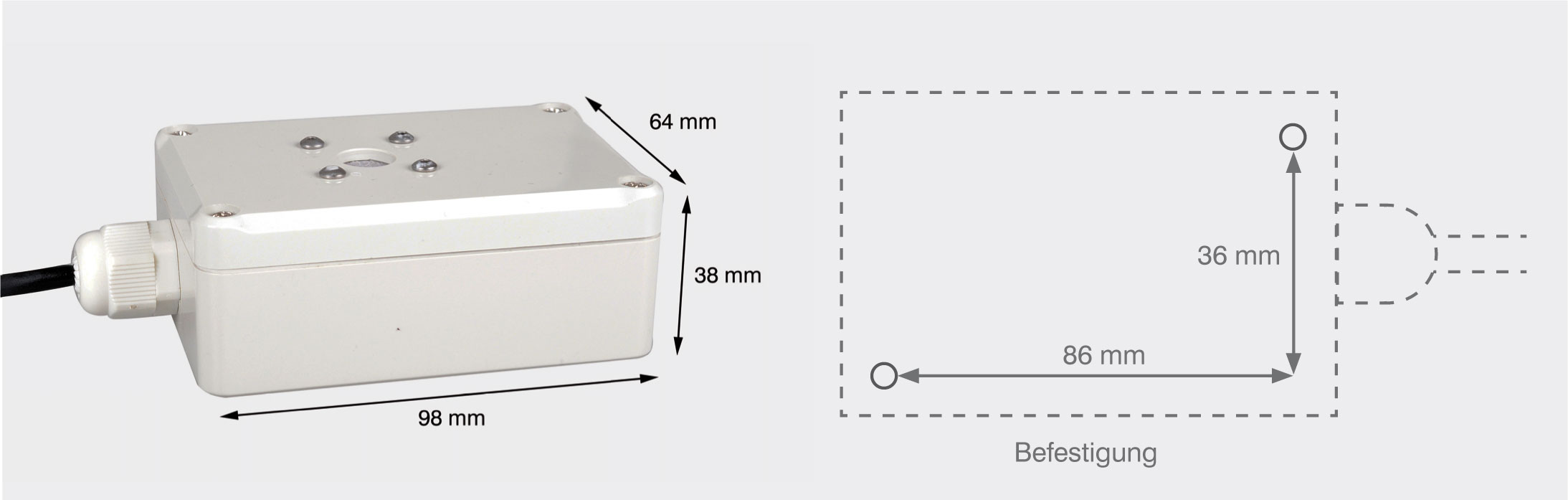

| DIMENSIONS | 98 x 64 x 38 mm (length x width x depth) |
| WEIGHT | ca. 140 g |
| CONDUIT | PG 9 cable joint (cable OD 2.5 - 8mm) |
 |
|
All information without guarantee. Subject to technical changes.
