NeodymLine A/B-WP/54-24

- dual channel high-power column loudspeaker system loaded with 2x4 3“ neodymium transducers
- 2 channel fullrange system
- Highest sound pressures even at very small dimensions
- Perfect sound in acoustically challenging areas
- Perfect speech intelligibility in reverberant rooms

The ITEC NEODYMLINE A/B-WP/54-24 is a 2-cannel (A/B) high-power passive column loudspeaker system with best performance in respect of speech intelligibility and music reproduction in difficult conditions. Due to the placement of the 2x4x3“ nodymium transducers, the vertical pattern is perfect even for reverberant rooms - less reflections onto ceilings. Developed for areas of public life, where security is the highest bid certified quality assurance ensuring consistent performance at continuous operation for decades. The optical integration of the NeodymLine - Series is very simply, because of the slim and elegant design. The build in 50 VA tranformers provides high quality audio performance.

ITEC NEODYMLINE A/B-WP/54-24
Mod. 1) 0°

ITEC NEODYMLINE A/B-WP/54-24
Mod. 2) -5°

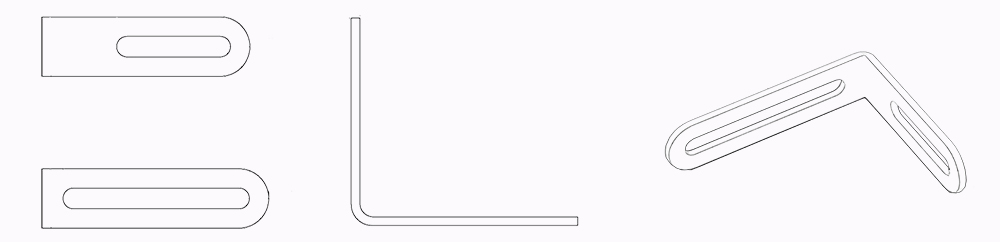

Mounting bracket standard (short)

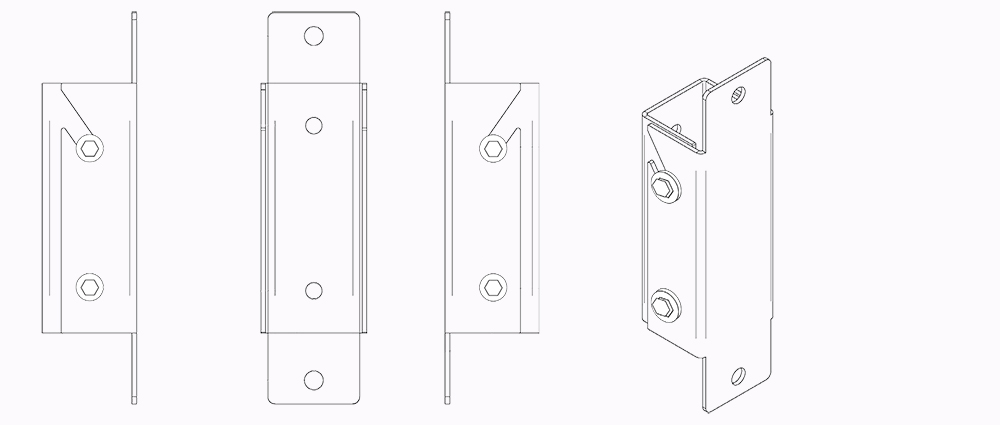

ITEC Swing & tilt mounting (Option)

MODEL	NEODYMLINE A/B-WP/54-24 MOD.1) 0°	NEODYMLINE A/B-WP/54-24 MOD.2) 5°
Rated Noise Voltage	100V
Rated Noise Power	2x50W transformer
Sensitivity for the stated reference axis	dB/1W/4m 81 dB/channel
Maximum sound pressure level	dB/50W/4m 97,12 dB/channel
Power Setting	50 / 25 / 12,5 / 6,25
Driver	3“ cone: 8
Weight	5,9 kg

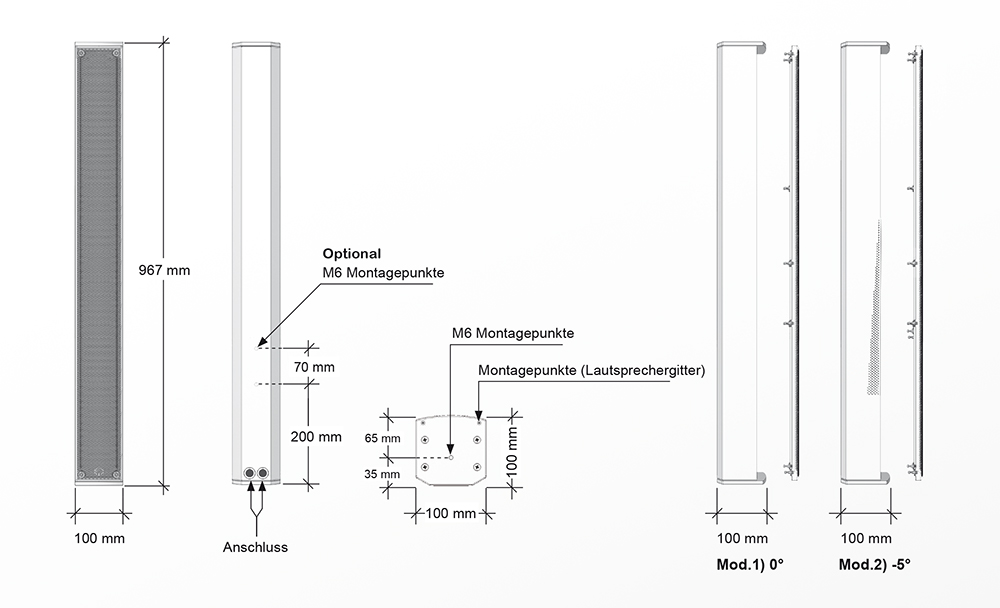

Dimensions (W x H x L)	100 x 967 x 100 mm
Housing	Material/Color welded aluminium / powder coated RAL 9010, RAL 9011 or customized

Subject to technical changes
